• Several lengths and connections avaliable on request.
• U.S. gallon (USG) for selecting.
• Can be equipped with reed switch option.

Working Conditions

• Ware temperature:≤40℃
• Water pressure:≤1.6MPa

Dial Plate DN15~25

Dimension Picture:

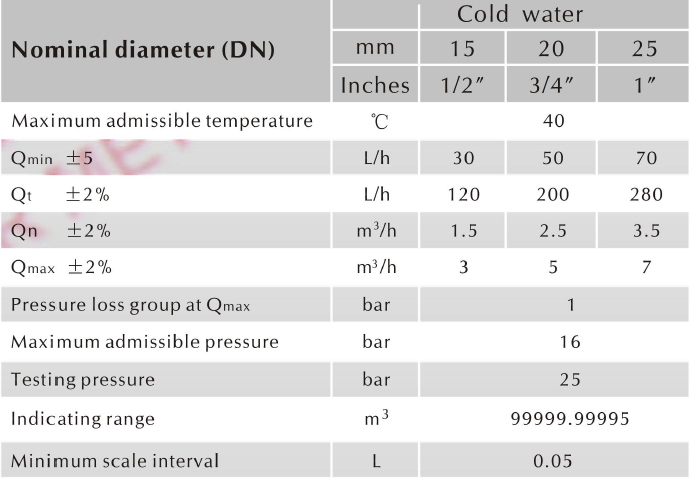

Main Technical Data

Flow Error Curve

Pressure Loss Curve

Maximum Permissible Error (both class A and class B)

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%.

In the upper zone from Qt inclusive up to and including Qmax is ±2%.

Installation Requirements

The meter should be installed in horizontal position with the register face upwards
Pipeline must be flushed before installation
The meter should be constantly full of water during operation
The meter must be installed with the direction of the flow as indicated by the arrow cast in the meter body.
